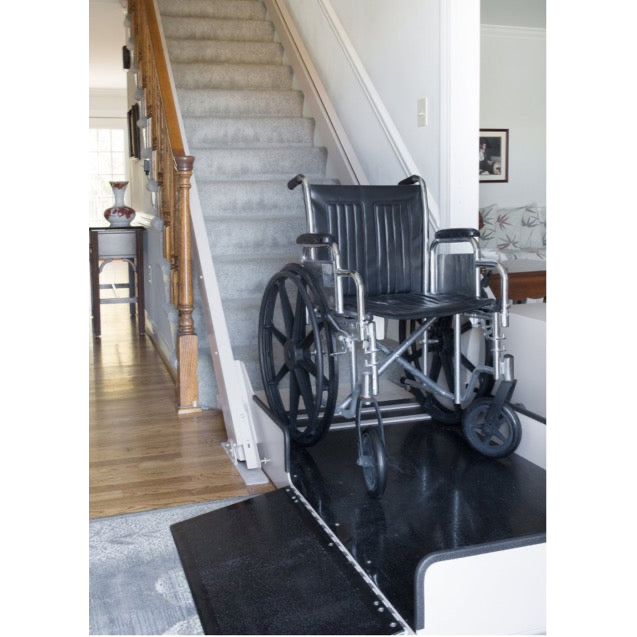

Incline Platform Wheelchair Lift
Incline Platform Wheelchair Lift
Couldn't load pickup availability
Prices start at $24,995
Please call our office for your free evaluation

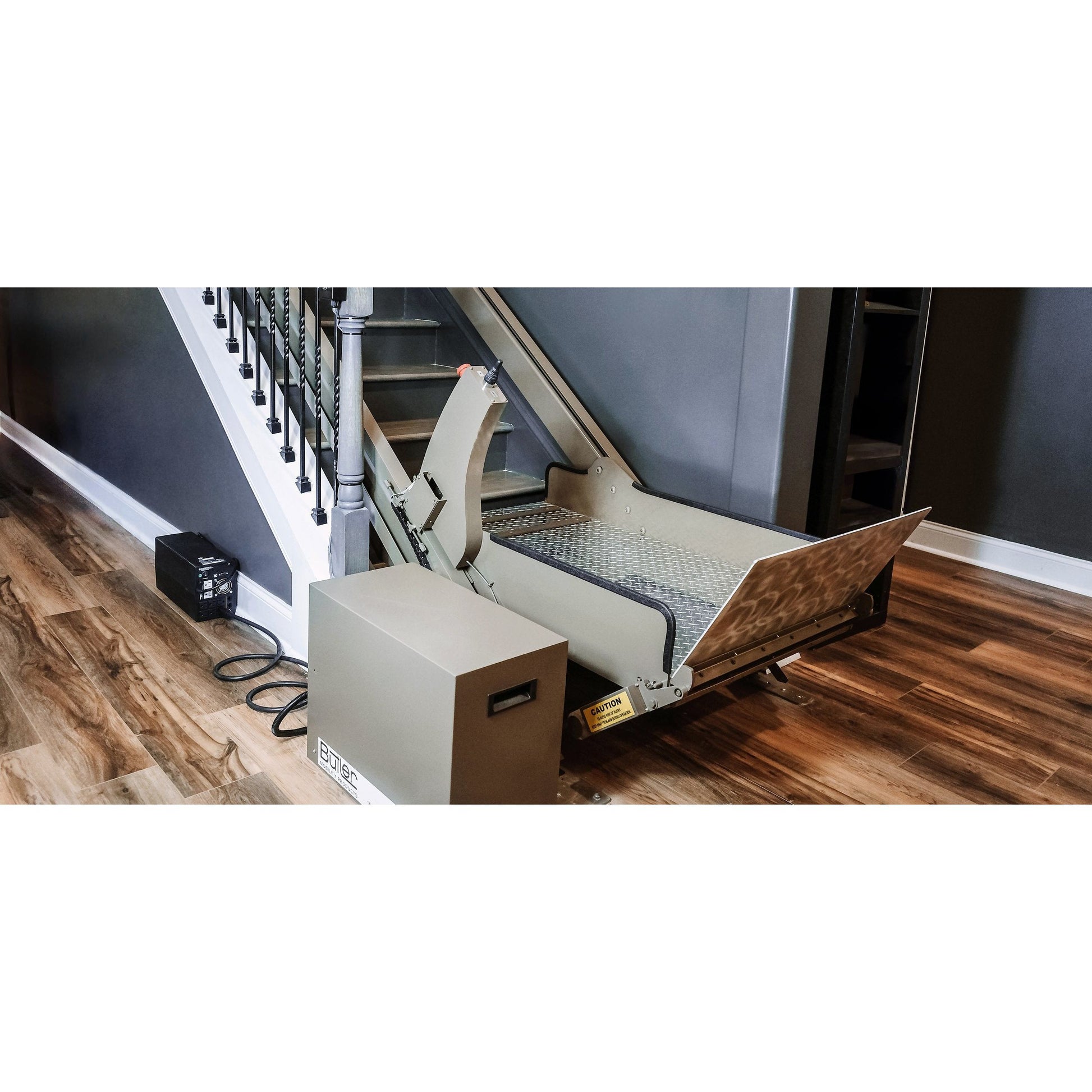

Our wheelchair lift is ADA-compliant and meets or exceeds all National Safety Code (ANSI/ASME code) requirements. All electrical components are UL®certified, and the unit requires only standard household current and a dedicated standard outlet. Our power transmission has been certified by Met Laboratories, Inc. to ASME A 17.5 /CSA B44.1-11 meeting approved standards for Elevator and Escalator Electrical Equipment. Our Incline Platform Wheelchair lift is certified to lift 750 lbs (350 kg) capacity.

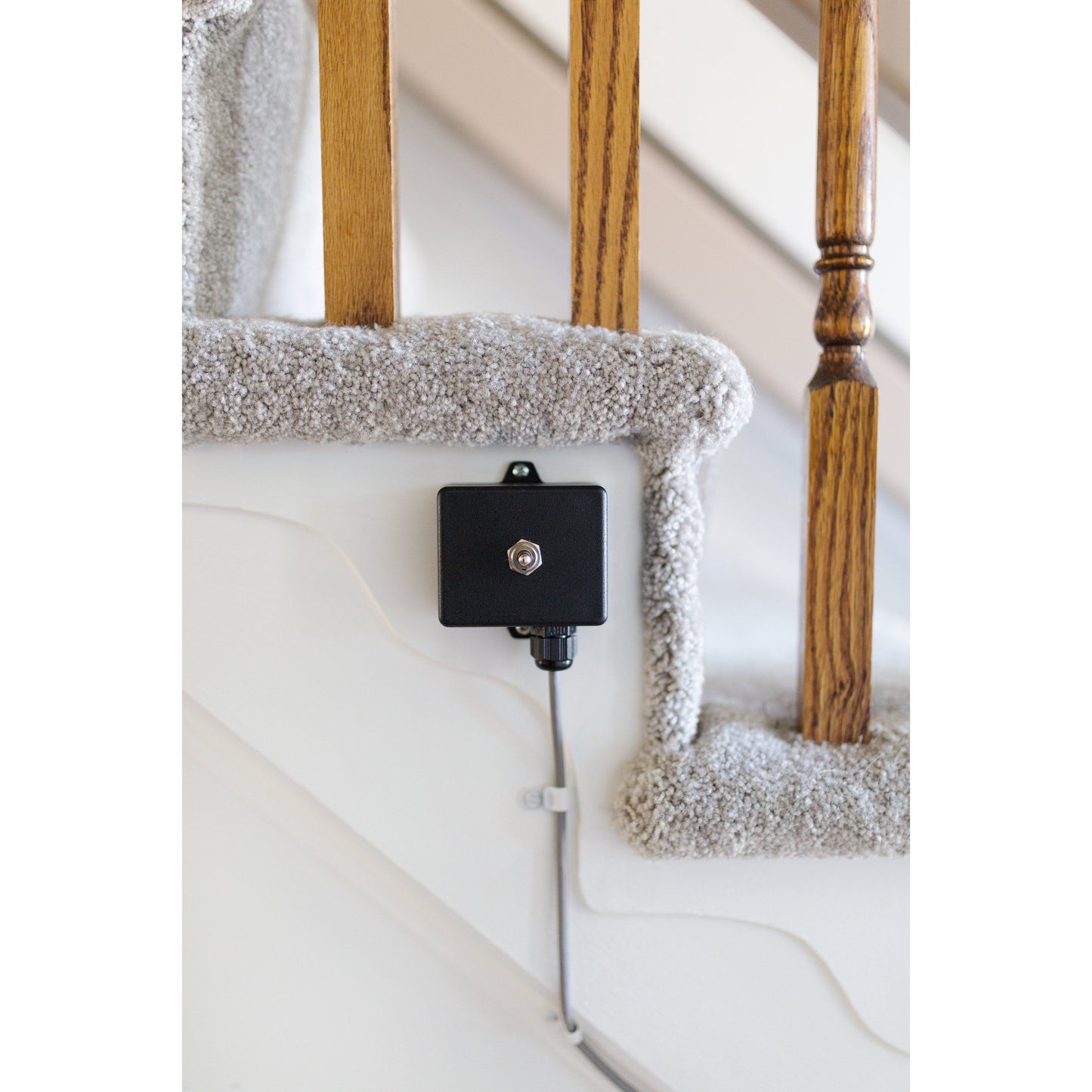

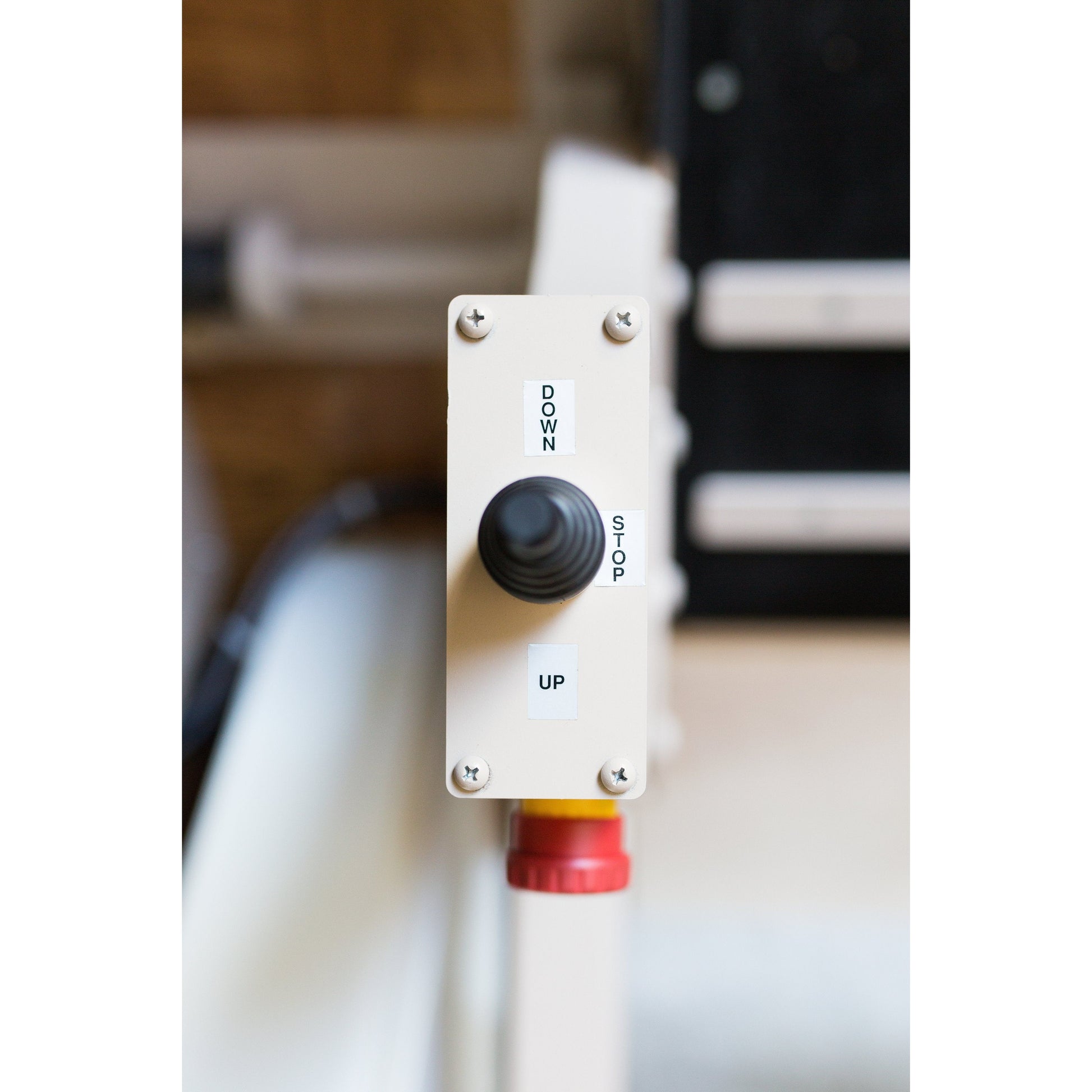

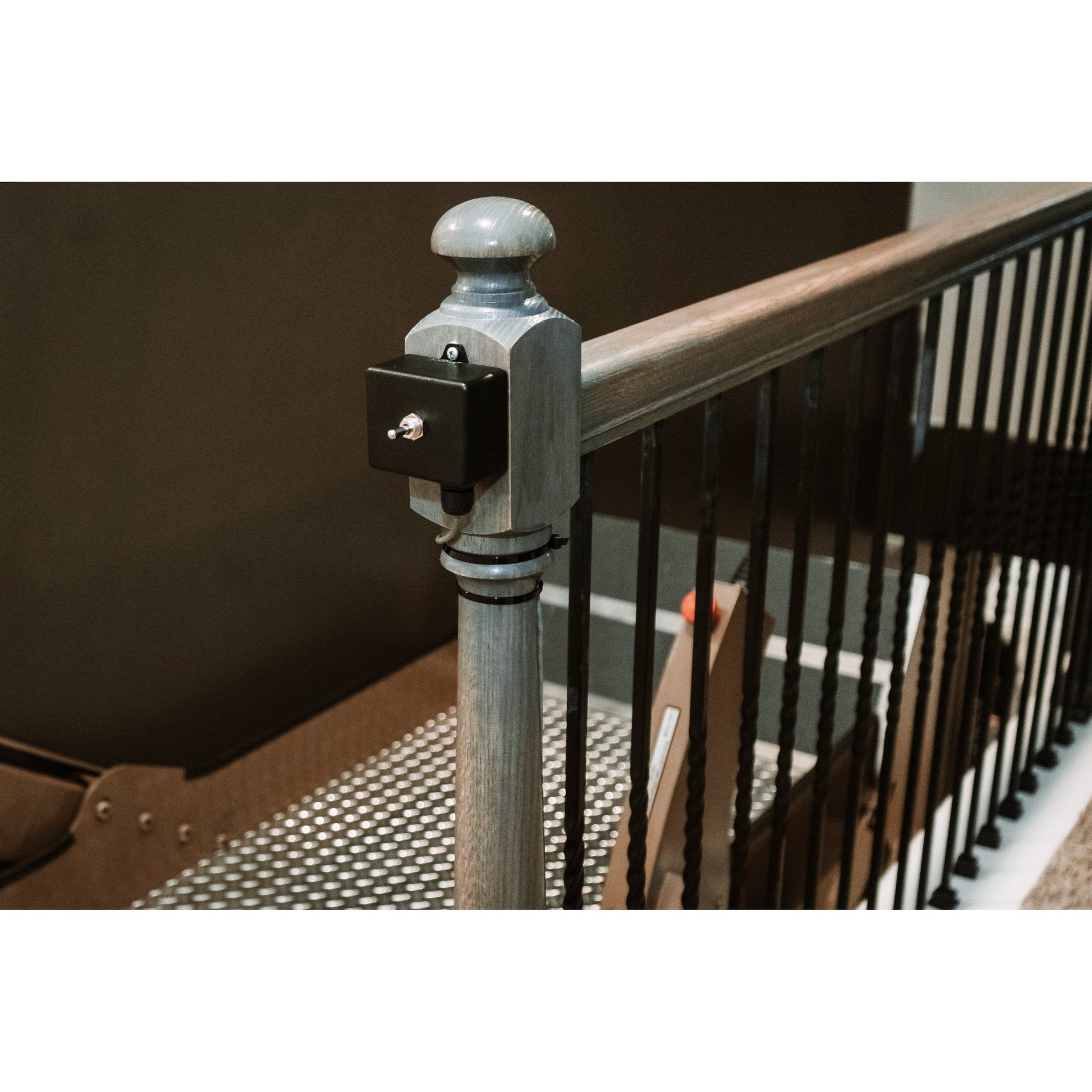

Our Inclined Platform Wheelchair Lift has three directional switches, all within easy reach of the user. One on the platform, another at the upper landing and another at the bottom landing. Keyed controls are also available for an additional cost. All switches are “momentary” (constant pressure) to meet safety code requirements.
In the event of a power failure, the included standard battery backup will bring the platform up and down at least 5 times, depending on the age of the battery, the height, and the load, so the user will never be left stranded. Our IPL comes with a standard 5 year warranty on all parts.
Wheelchair Lift Safety Features

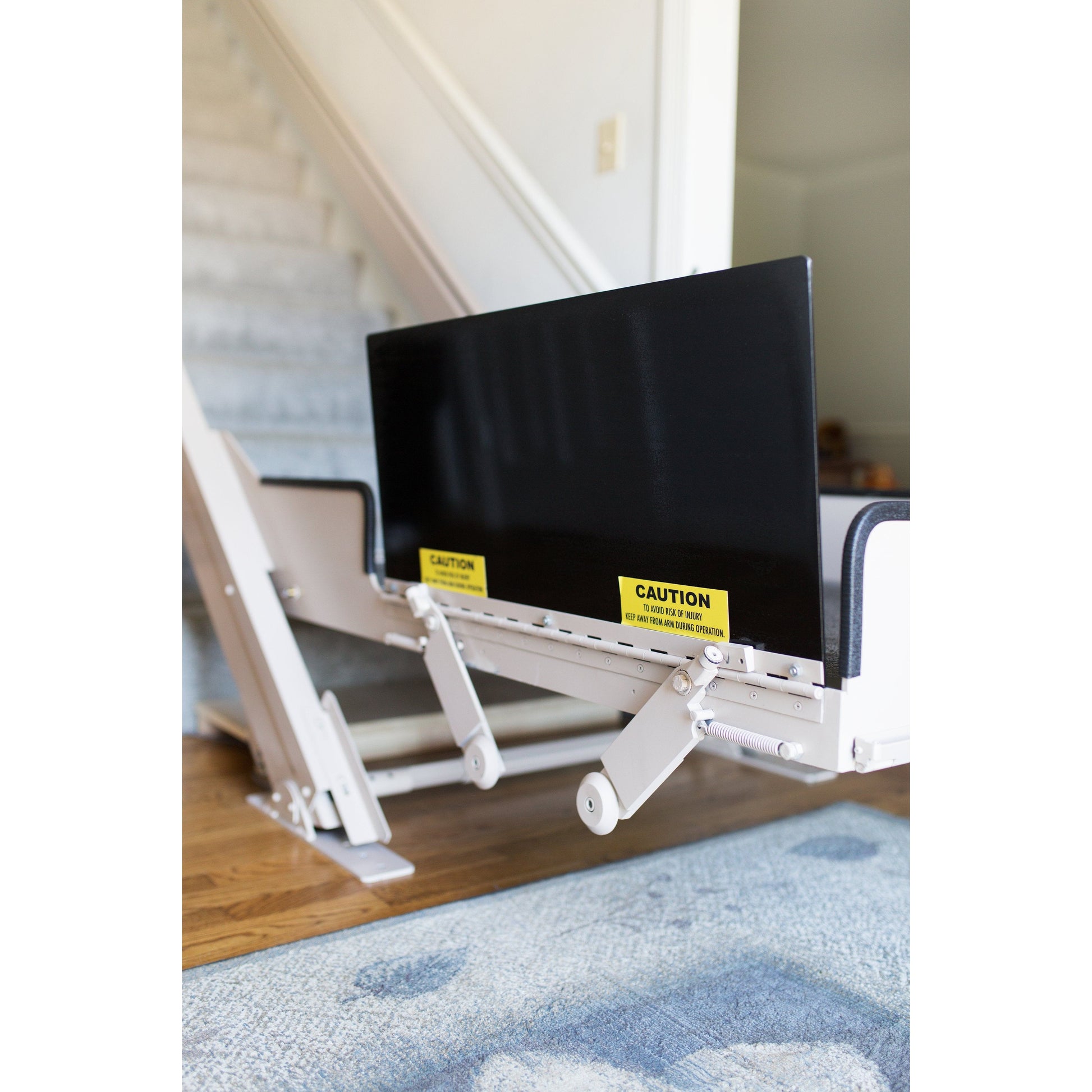

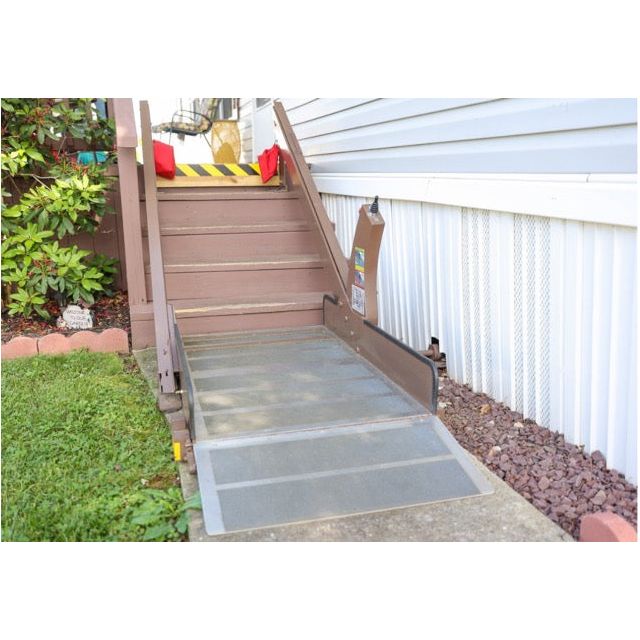

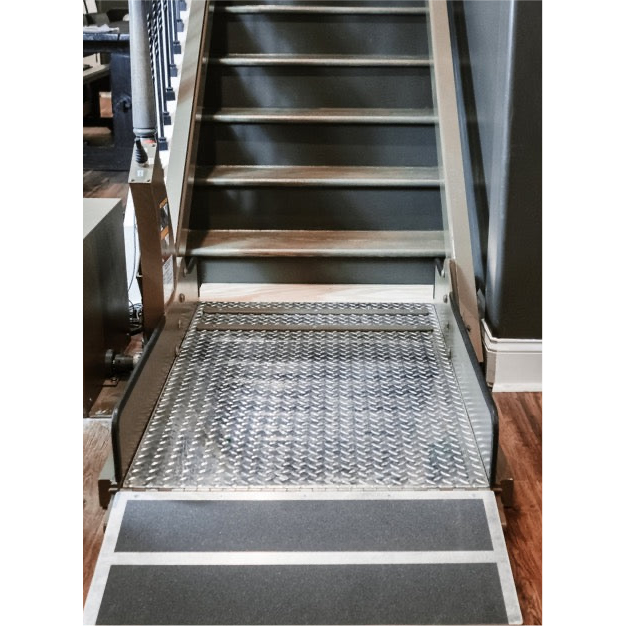

Our Inclined Platform Wheelchair Lift can be equipped with an automatic front or side folding ramp and guard that locks firmly in place during operation.
- Emergency stop button standard
- Battery backup is standard
- Optional key-operated control
- Slack/broken chain safety
- Redundant platform safeties
- Platform safety apron
- Over speed governor
- Upper and lower limit switches
- Over travel safety switch
- Safety clutch
