Prices start at $17,995
Please call our office for your free evaluation

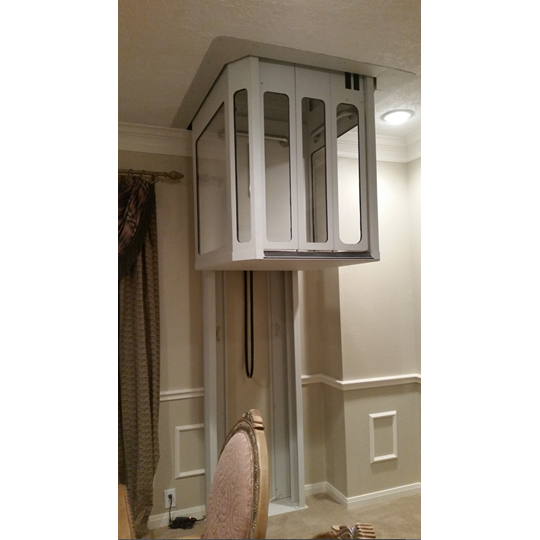

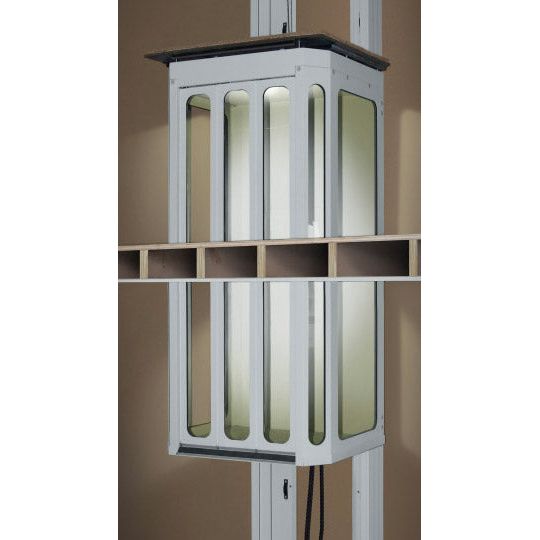

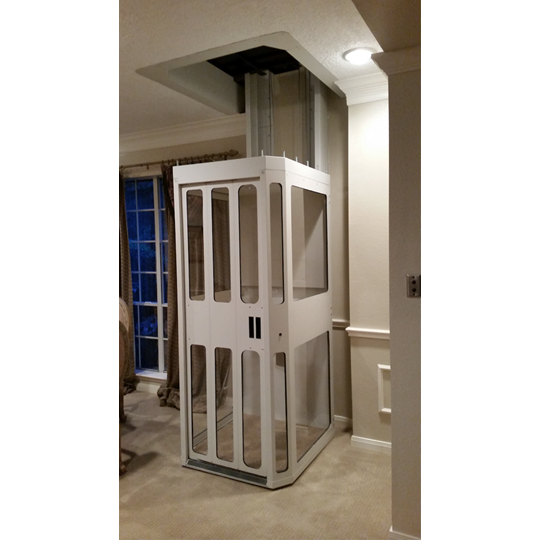

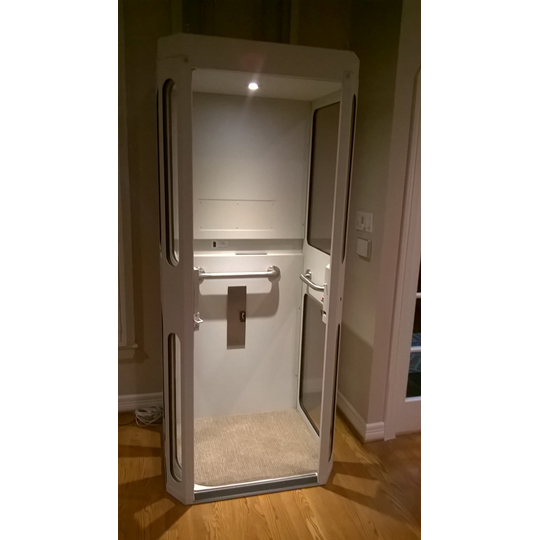

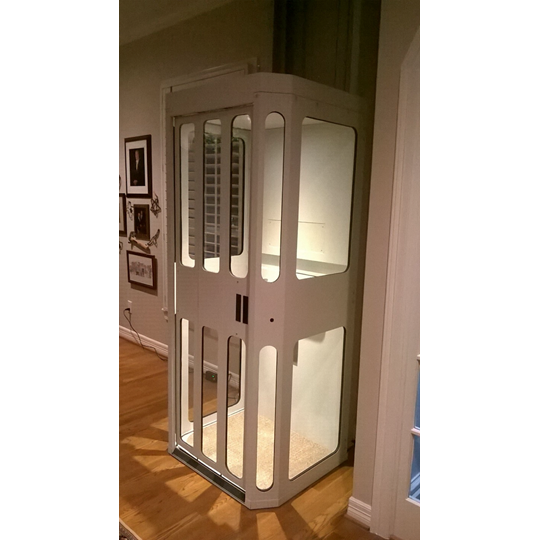

Our shaft-less or hoist-way elevator virtually eliminates concerns regarding power outages.
All of our elevators can run multiple trips (10+), in BOTH directions, on its own batteries.
GENERAL:
• Travel to 14' on 2-stop units at 10-12 fpm
• Travel to 21’ on 3-stop units (hoist-way install only) at 15 fpm
• Maximum stops 2 shaft-less, 3 with hoist-way enclosure (with auto-controls)
• 400 lbs Weight Capacity
• Extruded 6063 grade aluminum track
• Dual winding drum drive with ¼" aircraft cables – 7,000 lb breaking strengths

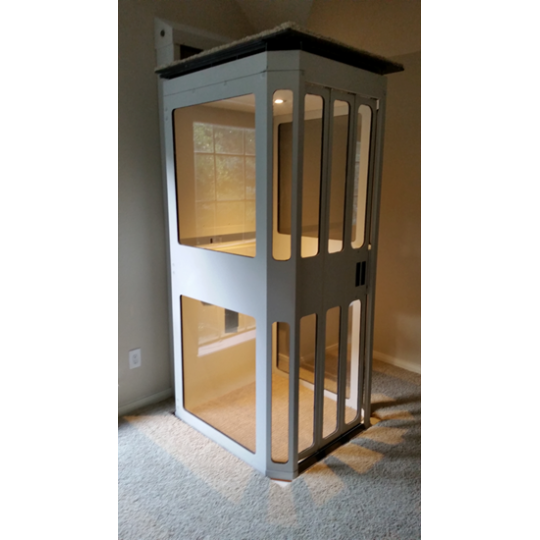

CAR:
• Finish (RAL 9002) powder coated with clear vision panels
• Configurations - Front entry, side entry or pass-thru
• Sliding car door with clear vision panels
CONTROLS:
• Battery powered with charger
• Constant pressure controls on all shaft-less units

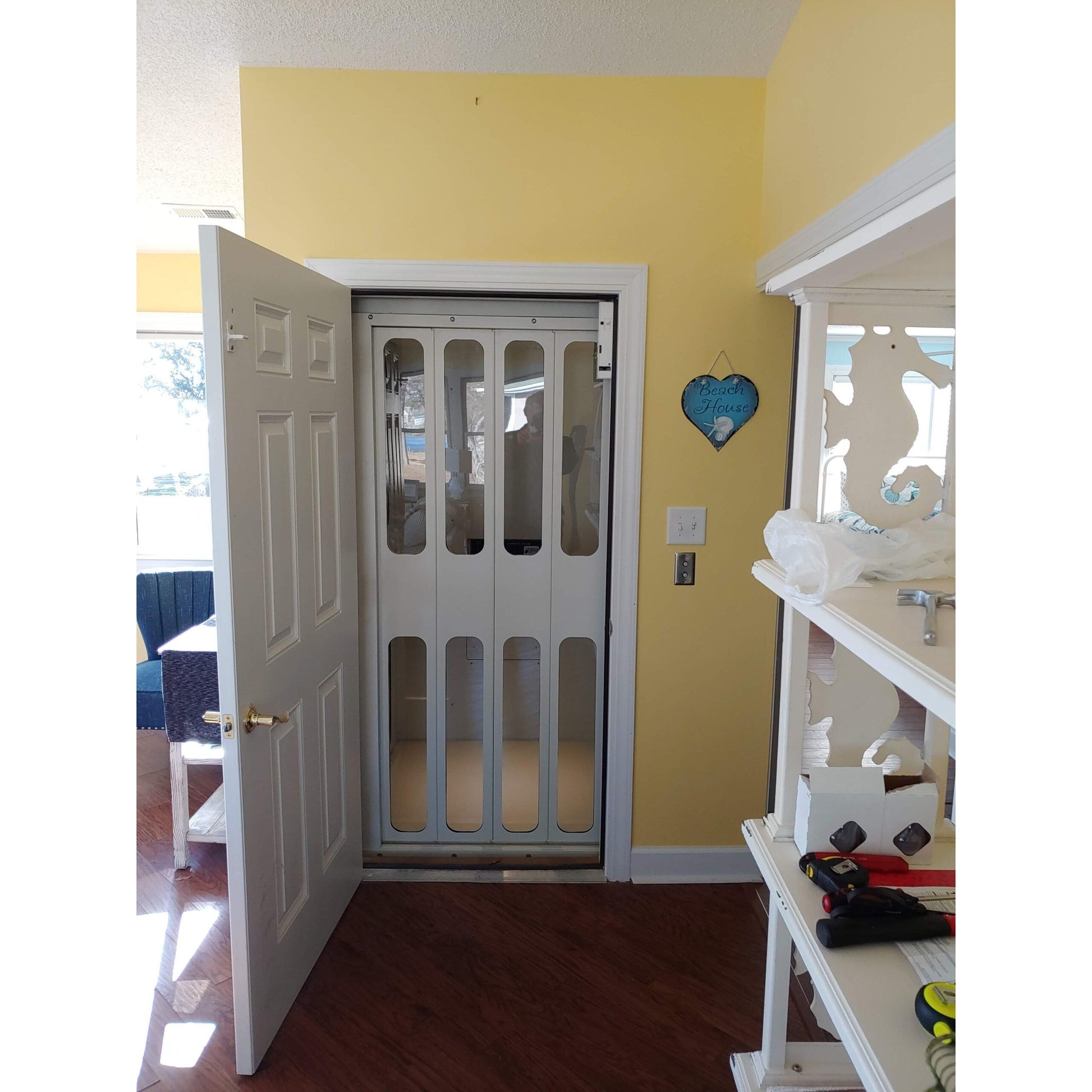

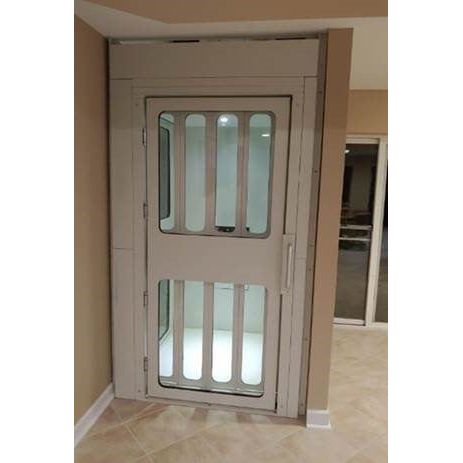

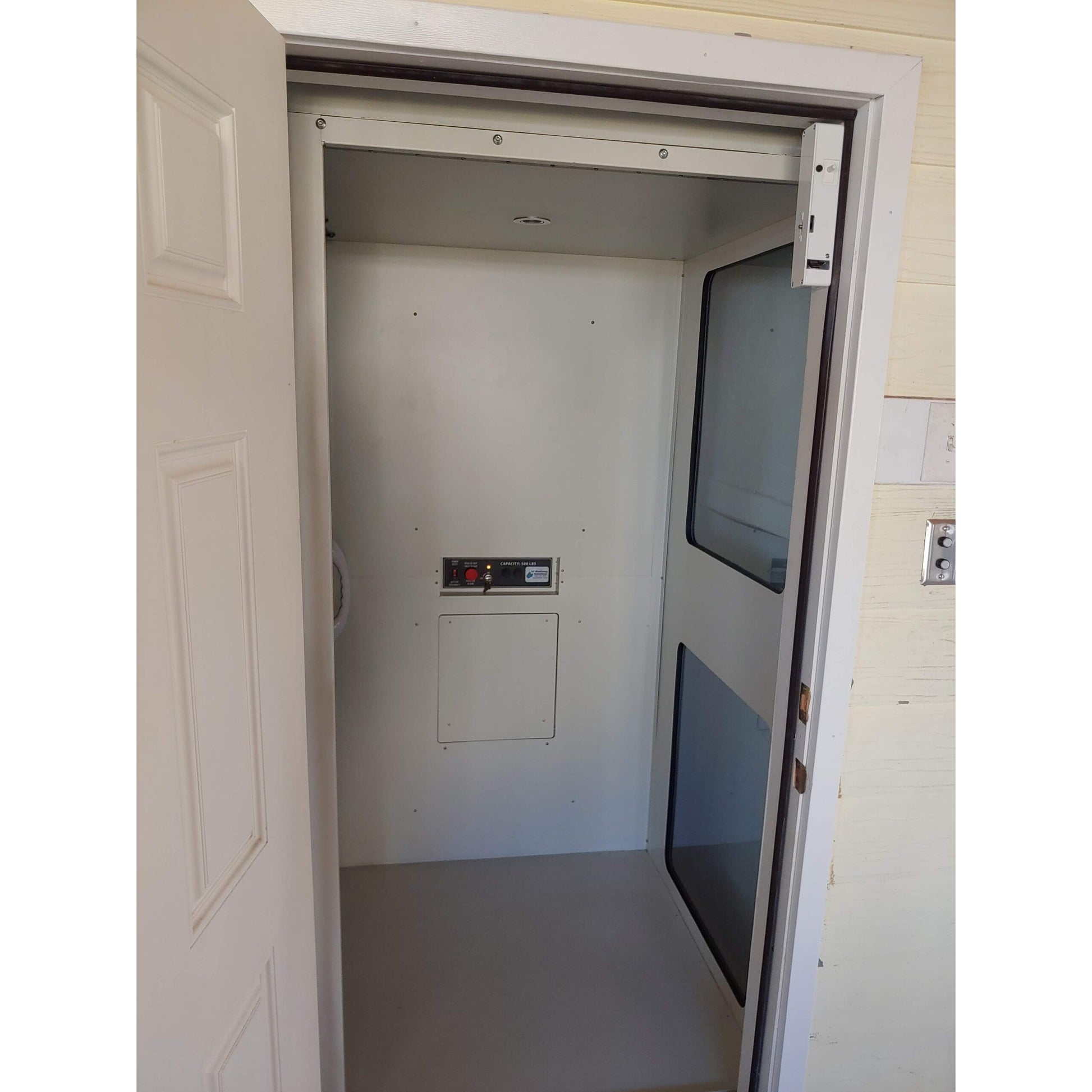

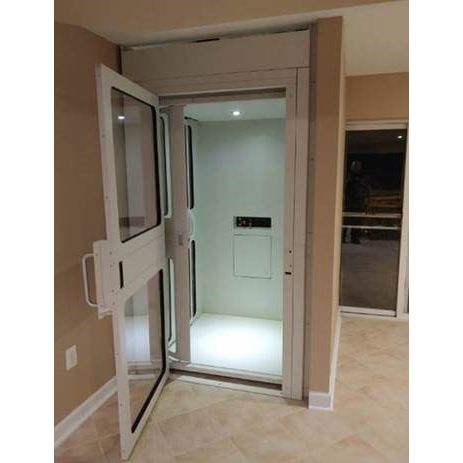

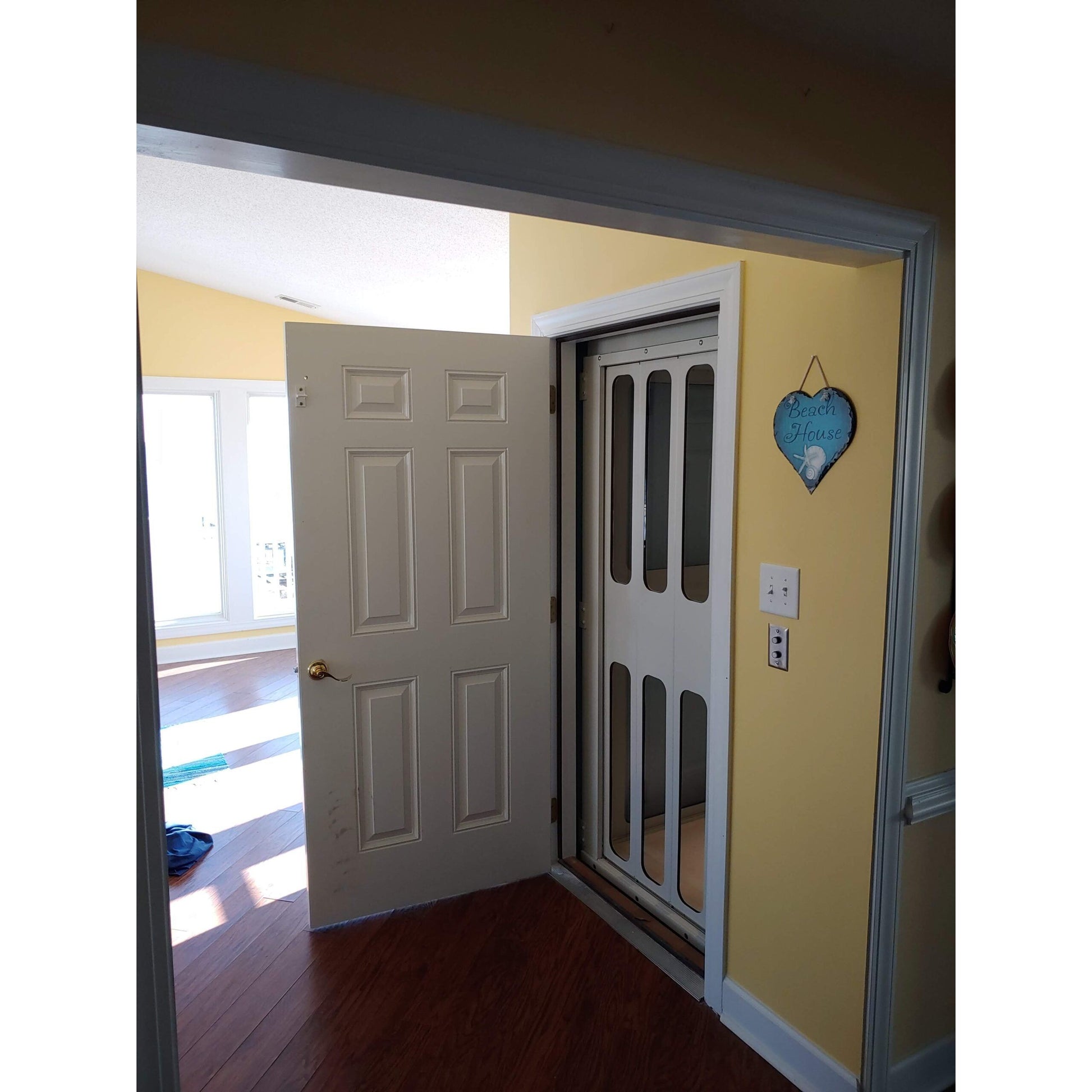

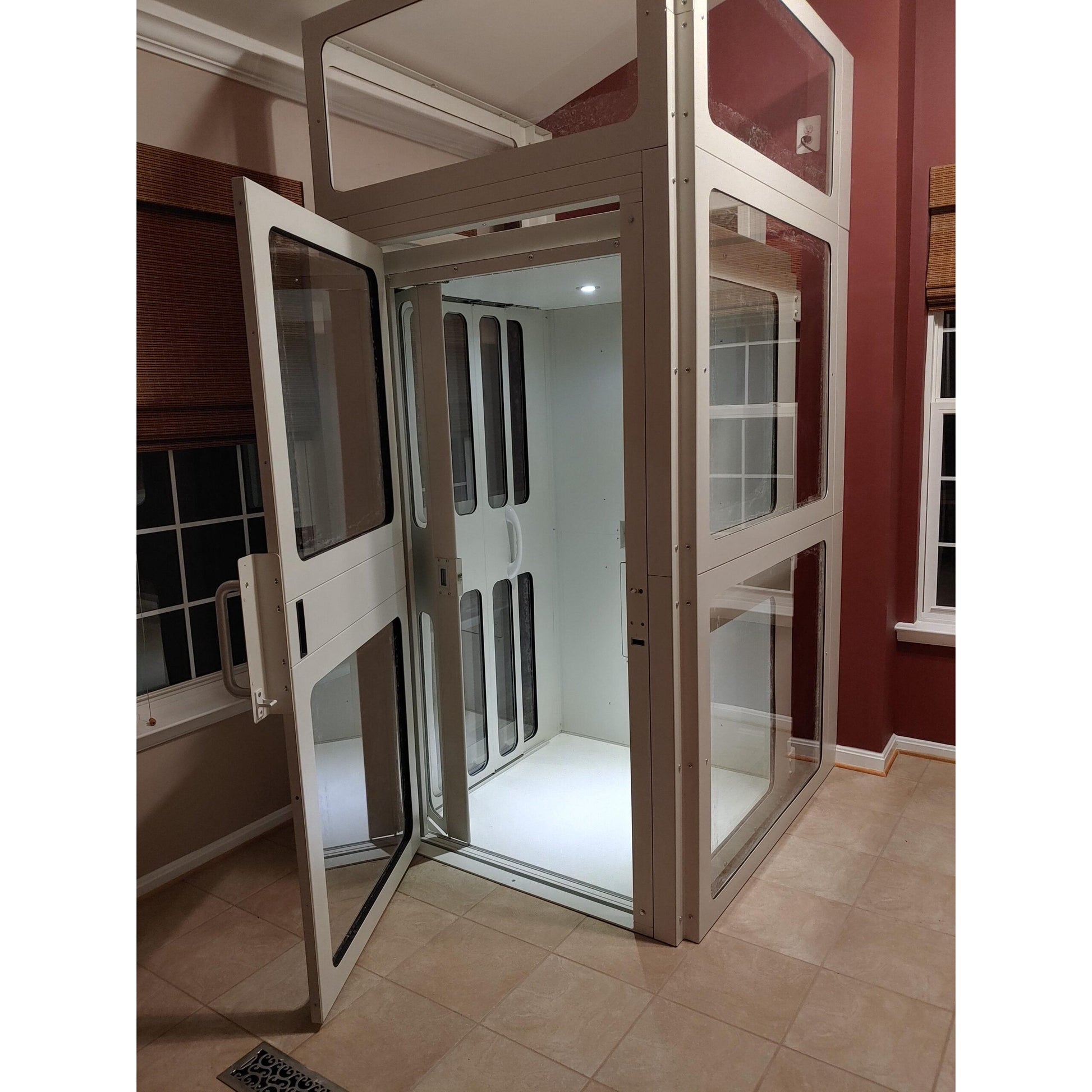

• Automatic controls on enclosed/hoist-way elevators
• RF wireless call stations/Key Fob
• Diagnostic LED indicator
SAFETY DEVICES:
• Limit switches at each stop
• Final limit at top
• Emergency stop and alarm
• Honeywell door interlock
• Hatch cover with sensors
• Safety pan on bottom of car
• Slack cable device
OPTIONS:
Custom Colors

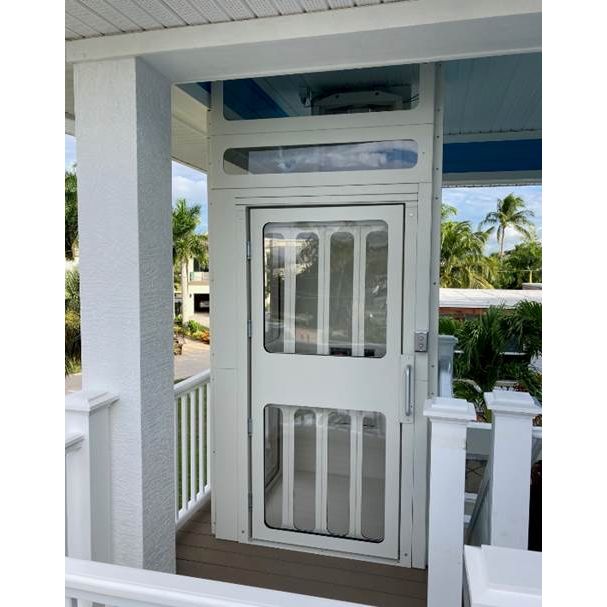

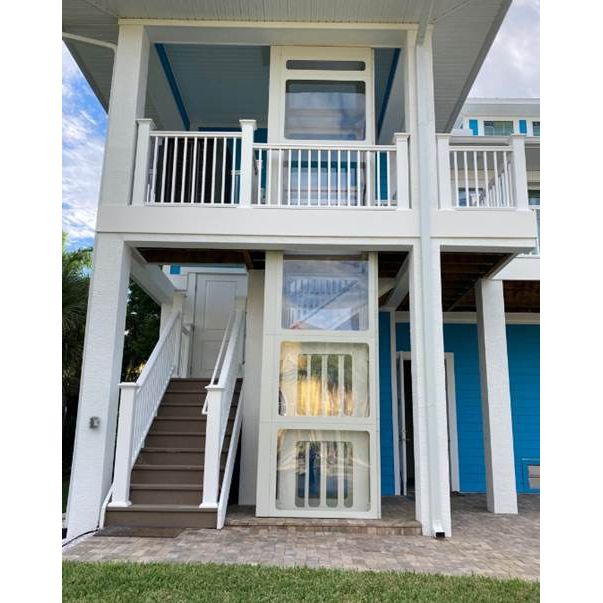

Prefabricated Hoist-Ways
Phone
Fold Down Seat
